Item Number: 62011

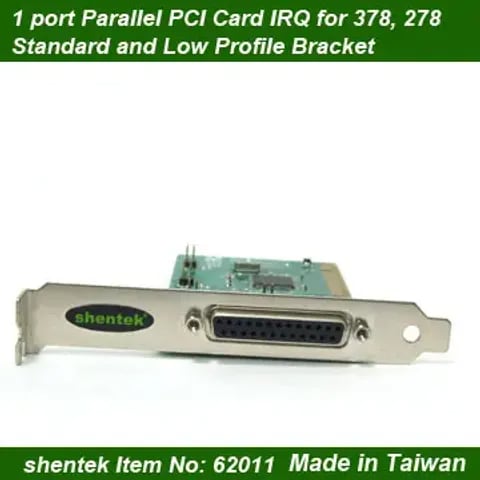

ProductDescription: 1 port Parallel Universal PCI card I/O Address for 378 and 278,Standard and Low Profile Bracket
Introduction
shentek releases 1 port ParallelUniversal PCI Card. It is compliance with PCI 33MHz ver 3.0/2.3/2.2/2.1specification. It designs for standard and low profile bracket. With this card,it can add 1 port Parallel to your system’s need. For Parallel Port,it supports IEEE Standard 1284 protocols(compatibility mode, Nibble mode, Bytemode, EPP mode, and ECP mode) for 16byte SPP/ECP mode. It also supports I/ORemap function, it allows Parallel can remap to 378 and 278. It is good withall kind of industrial
Application
Automated Teller Machine(ATM)
Point of Sale(POS)
Automated Retail Kiosks
Embedded System
Payment System
Traffic System
Factory Automation and Process Control
Building Automation
Healthcare System
Remote Access Servers
Storage Network Management
Features andBenefit
Expands 1 port Parallel for your system
Compatible with 3.3V/5V PCI and PCI-xslot
Supports Industrial Specification
Parallel – Compatibility mode, Nibblemode, Byte mode, EPP mode, and ECP mode)
16byte : SPP/ECP mode
I/O Address remap –Parallel – 378and 278
Supports Microsoft Windows, Linux
Specification
Hardware
Bus: 32 bit Universal PCI64/32bit 3.3V/5V PCI ver 3.0, 2.3, 2.2, 2.1 and PCI-X
Connector: DB25 Female x 1
Interface
Number of ports: 1 ports
Parallel: Parallel x 1
IRQ and I/O Address: Assigned bySystem or Remap function I/O Address 378 and 278.
Parallel
IEEE Standard 1284Protocols(compatibility Mode, Nibble Mode, Byte Mode, EPP Mode, and ECP Mode)
16byte EPP/ECP Mode
Driver Support
Windows: XP, 2003, Vista, 2008, Win 7
Linux: 2.4 and 2.6
Physical Characteristics
Bracket: Standard and LowProfile Bracket
Bracket Space: 1
Environmental Limits
Operating Temperature: -30 ~ 75℃
Storage Temperature: -40 ~ 85℃
Ambient Relative Humidity: 5 ~95% Non-Condensing
Standards and Certifications
CE and FCC supports
Product Production
Production: Made in Taiwan
Product Location: Taipei, Taiwan
Package Content
1 port Parallel PCI Card x 1
Low Profile Bracket x 1
Quick Instill Guide x 1
Driver CD x 1
Warranty
Warranty Period: 1 Year
Shipping Way
Register Air Mail
Deliveryby: ChunghwaPost Co., Ltd
Delivery Location: Shipfrom Taiwan
DeliveryWay: Register Small Packet – Air Mail
DeliveryTime: for most of area is around 15 – 20 working days. South America area and some countries are around 21 – 30 working days.
EMS
Deliveryby: ChunghwaPost Co., Ltd
Delivery Location: Ship from Taiwan
DeliveryWay: Register Small Packet – Air Mail
Delivery Time: for most of area is around 10 workingdays. South America area and some countriesare around 20 working days.
We suggest to use EMS,because it is fast and safe. Thank You
