Embedded Card RS485 RS422 M.2 Isolation

shentek M.2 embedded card has few kind of type - 2 port RS422 RS485 M.2 Card supports M key and B key M.2. The Card also supports 2.5KV Isolation protection. It also come with 4 wire RS485 spec

Item Number: 52048

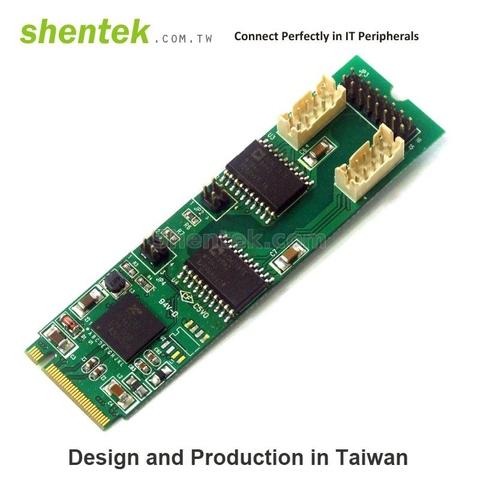

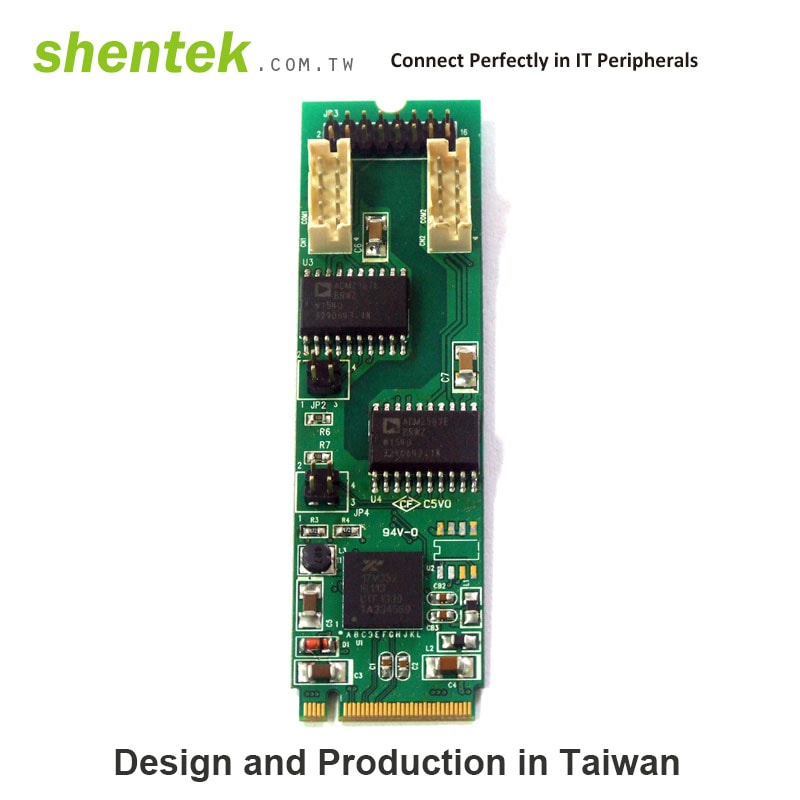

Product Description: 2 port Serial RS-422/485 M.2(NGFF) card + 2.5KV Isolation Protection

Features and Benefit

        Expands 2 com ports for your system

        Baud Rate up to 460Kbps

        Design to meet M.2 (NGFF) E key compliant

        Built-in 15KV ESD protection

        Supports Industrial Specification

        256 byte FIFOs

        Supports 2.5KV Isolation protection

        Supports Microsoft Windows, Linux, and QNX drivers

Specification

        Hardware

                Communication controller: 16C550 UART Compatible register Set

                Bus: M.2 E key x 1

                Connector: DB9M x 2

        Serial Interface

                Number of ports: 2 ports

                Serial Standard: RS422/485

                IRQ and I/O Address: Assigned by System

        Serial Line Protection

                ESD protection: 15KV ESD protection

                Isolation protection: 2.5KV

        Performance

                Baud rate: up to 460 Kbps

                FIFOs: 256 byte

        Serial Communication Parameters

                Data Bits: 5, 6, 7, 8

                Stop Bits: 1, 1.5, 2

                Parity: None, Even, Odd, Space, Mark

        Serial Signals

                RS-422: TxD+, TxD- RxD+, RxD-, GND

                2 Wire RS-485: Data+, Data-, GND

                4 Wire RS-485: TxD+, TxD-, RxD+, RxD-, GND

        Driver Support

                Windows: XP, 2003, Vista, 2008, Win 7, Win 8.1, Win 10

                Linux: 2.6/3.x

                QNX: 6.0

        Physical Characteristics

                Bracket: Standard and Low Profile Bracket

                Bracket Space: 1(Standard Bracket) or 2(Low Profile Bracket)

        Environmental Limits

                Operating Temperature: -30 ~ 75℃

                Storage Temperature: -40 ~ 85℃

                Ambient Relative Humidity: 5 ~ 95% Non-Condensing

        Standards and Certifications

                CE and FCC supports

        Product Production

                Production: Made in Taiwan

                Product Location: Taipei, Taiwan

        Package Content

                2 port RS-422/485 Isolation M.2 Card x 1

                DB9M Cable x 2

                Quick Instill Guide x 1

                Driver CD x 1

Warranty

                Warranty Period: 1 Year
