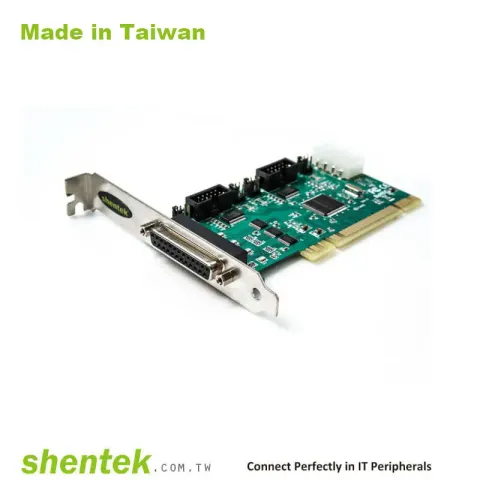

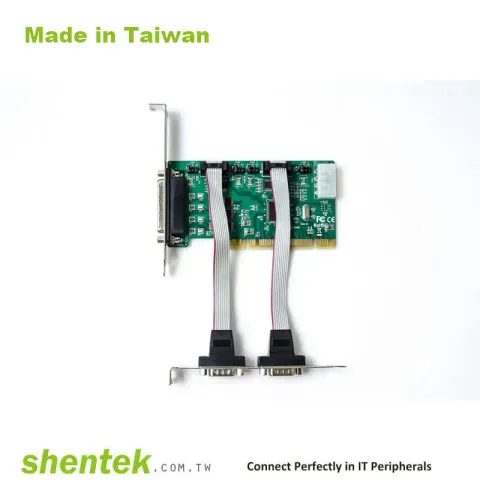

Industrial 2 port RS232 RS-232 1 port Parallel PCI Card Remap 378 278 3F8 2F8

62012

ItemNumber: 62012



ProductDescription: 2 port High Speed Serial RS-232 + 1 port Parallel Universal PCI cardsupport Pin1 – 5V/12V/DCD, Pin9 - 5V/12V/RI Selectable and Standard and LowProfile Bracket



Introduction

        shentek releases 2 port Serial RS-232 +1 port Parallel Universal PCI Card. It is compliance with PCI 33MHz ver3.0/2.3/2.2/2.1 specification. It designs for standard and low profile bracket.With this card, it can add 2 port Serial RS-232 to your system’s need. The 62002supports 256 bytes onboard FIFO and compatible with 16C1050 UART specification. It also comes for HighSpeed up to 921.6Kbps baud rate. For Parallel Port, it supports IEEEStandard 1284 protocols(compatibility mode, Nibble mode, Byte mode, EPP mode,and ECP mode) for 16byte SPP/ECP mode. It also supports I/O Remap function, itallows to remap RS-232 for 3F8,2F8, 3E8, and 2E8. ForParallel can remap to 378 and 278. It is good with all kind of industrial




Application

        Automated Teller Machine(ATM)

        Point of Sale(POS)

        Automated Retail Kiosks

        Embedded System

        Payment System

        Traffic System

        Factory Automation and Process Control

        Building Automation

        Healthcare System

        Remote Access Servers

        Storage Network Management



Featuresand Benefit

        Expands 2 com ports for your system

        High Speed Baud Rate up to 921.6Kbps

        Compatible with 3.3V/5V PCI and PCI-xslot

        Power Supply through communicationline(RI signal)


        Built-in 15KV ESD protection

        Supports Industrial Specification

        256 byte FIFOs integrated UART

        Supports 5V/12V Selectable

        Parallel –Compatibility mode, Nibble mode, Byte mode, EPP mode, and ECP mode)

        16byte :SPP/ECP mode

        I/OAddress remap – RS-232 for 3F8,2F8, 3E8, and 2E8.Parallel – 378 and 278

        Supports Microsoft Windows, Linux




Specification

        Hardware

                Communication controller: 16C550 UART Compatible register Set

                Bus: 32 bit Universal PCI64/32bit 3.3V/5V PCI ver 3.0, 2.3, 2.2, 2.1 and PCI-X

                Connector: DB9 male x 2, DB25Female x 1



        Interface

                Number of ports: 3 ports

                Serial Standard: RS-232 x2

                Parallel: Parallel x 1

                IRQ and I/O Address: Assigned bySystem or Remap function I/O Address RS-232 for 3F8, 2F8,3E8, and 2E8. Also supports remap function for Parallel for 378 and 278.



        Serial Line Protection

                ESD Protection: 15KV ESDProtection for all signals





        Performance

                Baud rate: up to 921.6 Kbps

                FIFOs: 256 byte



        Serial Communication Parameters

                Data Bits: 5, 6, 7, 8

                Stop Bits: 1, 1.5, 2

                Parity: None, Even, Odd, Space,Mark

                Flow Control: RTS/CTS, XON/XOFF



        Parallel

                IEEE Standard 1284 Protocols(compatibility Mode, Nibble Mode, Byte Mode,EPP Mode, and ECP Mode)

                16byteEPP/ECP Mode



        SerialSignals

                RS-232: TxD, RxD, RTS, CTS, DTR,DSR, 5V/12V/DCD(selectable), GND, 5V/12V/RI(selectable)




        Driver Support

                Windows: XP, 2003, Vista, 2008, Win 7/8.1

                Linux: 2.4/2.6/3.x



        Physical Characteristics

                Bracket: Standard and LowProfile Bracket

                Bracket Space: 2(StandardBracket) or 3(Low Profile Bracket)



        Environmental Limits

                Operating Temperature: -30 ~ 75℃

                Storage Temperature: -40 ~ 85℃

                Ambient Relative Humidity: 5 ~95% Non-Condensing



        Standards and Certifications

                CE and FCC supports





        Product Production

                Production: Made in Taiwan

                Product Location: Taipei, Taiwan



        Package Content

                2 port RS-232 + 1 port Parallel PCI Card x 1

                LowProfile Bracket x 3

                Quick Instill Guide x 1

                Driver CD x 1




Warranty

                Warranty Period: 1 Year



ShippingWay

Register Air Mail

                Delivery by: Chunghwa Post Co.,Ltd

                Delivery Location: Ship from Taiwan

                Delivery Way: Register SmallPacket – Air Mail

                Delivery Time: for most of areais around 15 – 20 working days. South Americaarea and some countries are around 21 – 30 working days.
