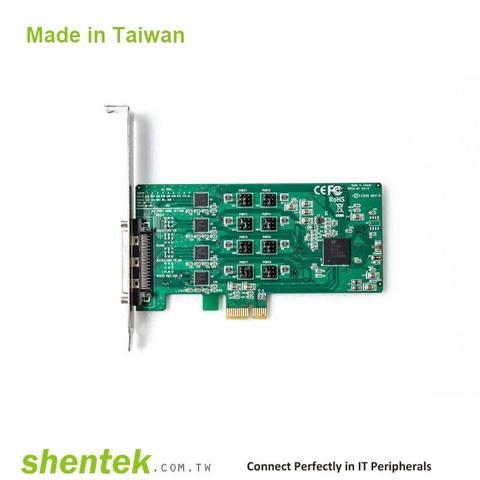

shentek products Serial 3 in 1 PCI Express Card. The 8 port RS232 RS422 RS485 PCIe supports 4 wire RS485 and high speed 921K transfer rate. It also designs with Low profile bracket
Item Number: 52028
Product Description: 8 port High Speed Serial RS-RS232 RS422 RS485 PCI Express(PCIe) Card supports Standard and Low Profile Bracket, with 600W Surge Protection
Introduction
shentek releases 8 port Serial RS232 RS422 RS4855 PCI Express(PCIe) Card. It is great design for PCI Express Base specification revision 1.1. Also work with PCI Express x 1, x2, x4, x8 and x 16 lane bus. It designs for standard and low profile bracket. With this card, it can add 8 port Serial RS232, RS-422(Point to Point Mode), or 2 Wire RS-485 or 4 Wire RS-485(RS-422 Multi-drop mode) to your system’s need. The 52028 supports 256 bytes onboard FIFO and compatible with 16C1050 UART specification. It also comes for High Speed up to 921.6Kbps baud rate. It is good with all kind of industrial
Application
Automated Teller Machine(ATM)
Point of Sale(POS)
Automated Retail Kiosks
Embedded System
Payment System
Traffic System
Factory Automation and Process Control
Building Automation
Healthcare System
Remote Access Servers
Storage Network Management
Features and Benefit
Expands 8 com ports for your system
High Speed Baud Rate up to 921.6Kbps
Design to meet PCI Express 2.0 Gen 1 compliant
Supports PCI Express x1, x2, x4, x8, and x16 Lane
Max 10 device connectivity for 4 Wire RS-485(RS-422 Multi-Drop) mode
Max 32 device connectivity for 2 Wire RS-485 mode
Built-in 15KV ESD protection
600W Surge protection
Supports Industrial Specification
256 byte FIFOs
Supports Microsoft Windows, Linux, and QNX drivers
Specification
Hardware
Communication controller: 16C550 UART Compatible register Set
Bus: PCI Express x 1
Connector: VHDCI 68
Serial Interface
Number of ports: 8 ports
Serial Standard: RS232 RS422 RS4855
IRQ and I/O Address: Assigned by System
Serial Line Protection
ESD Protection: 15KV ESD Protection for all signals
Surge Protection: 600W Surge Protection for RS-422/485 signals
Performance
Baud rate: up to 921.6 Kbps
FIFOs: 256 byte
Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND. RI
RS-422: TxD+, TxD- RxD+, RxD-, GND
2 Wire RS-485: Data+, Data-, GND
4 Wire RS-485: TxD+, TxD-, RxD+, RxD-, GND
Driver Support
Windows: XP, 2003, Vista, 2008, Win 7, Win 8.1, and Win 10
Linux: 2.6, and 3.x
QNX: 6.0
Physical Characteristics
Bracket: Standard and Low Profile Bracket
Bracket Space: 1
Environmental Limits
Operating Temperature: -30 ~ 75℃
Storage Temperature: -40 ~ 85℃
Ambient Relative Humidity: 5 ~ 95% Non-Condensing
Standards and Certifications
CE and FCC supports
Product Production
Production: Made in Taiwan
Product Location: Taipei, Taiwan
Package Content
8 port RS232 RS422 RS4855 PCI Express Card x 1
VHDCI 68 pin to 8 x DB9M Cable x 1
DB9F to 5 pin Terminal Block 600W Surge Adapter x 8
Low Profile Bracket x 1
Quick Instill Guide x 1
Driver CD x 1
Warranty
Warranty Period: 1 Year
