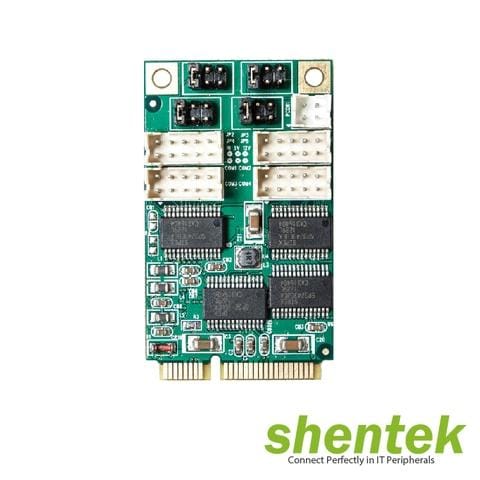

shentek products Serial Mini PCIe card. It is good for embedded system to add 4 port RS232. It comes with 4 cables with DB9 connector, it is standard RS232 pinout .
Item Number: 52015
Product Description: 4 port High Speed Serial RS232 Mini PCI Express(Mini PCIe) card support 5V/12V/RI Selectable
Introduction
shentek releases 4 port Serial RS232 Mini PCI Express(PCIe) Card. It is great design for PCI Express Base specification revision 1.1. Also work with PCI Express x 1, x2, x4, x8 and x 16 lane bus. It designs for standard and low profile bracket. With this card, it can add 4 port Serial RS232 to your system’s need. The 52015 supports 256 bytes onboard FIFO and compatible with 16C1050 UART specification. It also comes for High Speed up to 921.6Kbps baud rate. It is good with all kind of industrial
Features and Benefit
Expands 4 com ports for your system
High Speed Baud Rate up to 921.6Kbps
Design to meet PCI Express 2.0 Gen 1 compliant
Supports PCI Express x1, x2, x4, x8, and x16 Lane
Built-in 15KV ESD protection
Supports Industrial Specification
256 byte FIFOs
Supports 5V/12V/RI Selectable
Supports Microsoft Windows, Linux, and QNX drivers
Application
Automated Teller Machine(ATM)
Point of Sale(POS)
Automated Retail Kiosks
Embedded System
Payment System
Traffic System
Factory Automation and Process Control
Building Automation
Healthcare System
Remote Access Servers
Storage Network Management
Specification
Hardware
Communication controller: 16C550 UART Compatible register Set
Bus: Mini PCI Express x 1
Connector: DB9M x 4
Serial Interface
Number of ports: 4 ports
Serial Standard: RS232
IRQ and I/O Address: Assigned by System
Serial Line Protection
ESD Protection: 15KV ESD Protection for all signals
Performance
Baud rate: up to 921.6 Kbps
FIFOs: 256 byte
Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF
Serial Signals
RS232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, 5V/12V/RI
Driver Support
Windows: XP, 2003, Vista, 2008, Win 7, Win 8.1, and Win 10
Linux: 2.6, and 3.x
QNX: 6.0
Physical Characteristics
Bracket: Standard and Low Profile Bracket
Bracket Space: 4
Environmental Limits
Operating Temperature: -30 ~ 75℃
Storage Temperature: -40 ~ 85℃
Ambient Relative Humidity: 5 ~ 95% Non-Condensing
Standards and Certifications
CE and FCC supports
Product Production
Production: Made in Taiwan
Product Location: Taipei, Taiwan
Package Content
4 port RS232 Mini PCI Express Card x 1
2*5 Pin to 4 x DB9M Cable 10cm x 4
Quick Instill Guide x 1
Driver CD x 1
Warranty
Warranty Period: 2 Years
